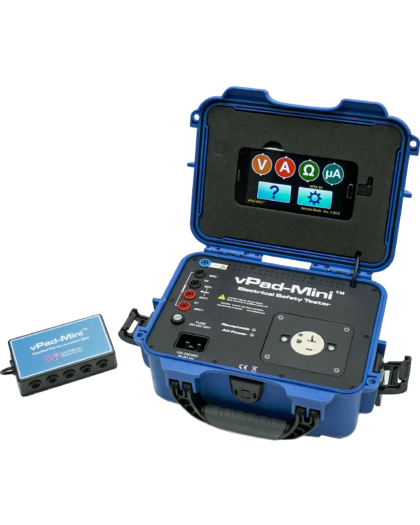

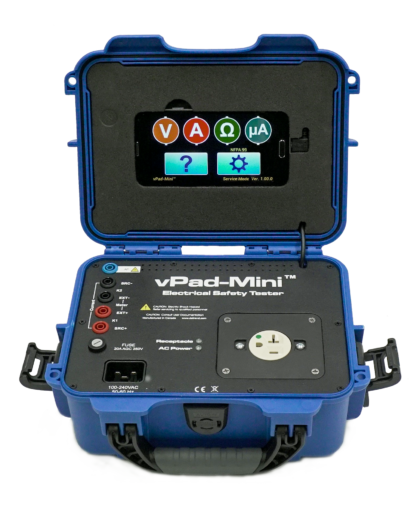

vPad-Mini is a compact electrical safety analyzer that is packed with features.
Although simple and easy to use, vPad-Mini is nonetheless capable of performing many of the tests specified in electrical safety standards such as AAMI-ES1, NFPA 99, IEC 60601, IEC 62353 and IEC 61010.

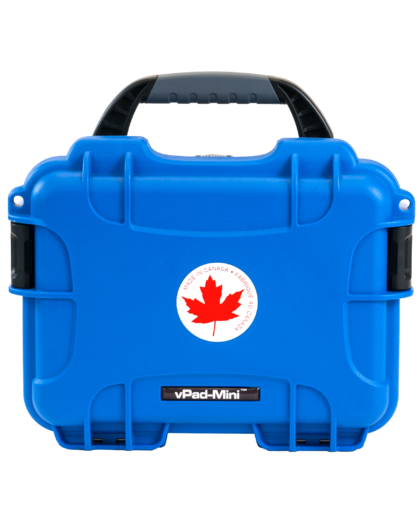

Providing a watertight rugged plastic case and a user interface based on a 5″ Android smartphone, vPad-Mini is based on the existing vPad Rugged product. Although significantly smaller than vPad Rugged, vPad-Mini provides the same 20 ampere rating and measurement accuracy.
- Tests to NFPA-99, IEC 62353, IEC 60601, IEC 61010 & AAMI/ANSI ES-1 standards
- High-resolution touchscreen LCD
- Applied Parts Testing including Mains On Applied Part
- Optional Record Management and Printing
- Available Automatic Test Sequences
- Small footprint: 21 x 15 x 9.4 cm (8.4 x 6 x 3.7 in)
Standard Apps
vPad-Reports
Optional Apps
vPad-Mini Test Automation
vPad-Mini Test Record Management
Packages
Test Automation and Record Management Package
Cable
3140-425
XDK-Kelvin Cable
3140-475
Kelvin Clamp Cable
3140-479
Kelvin Probe Cable
7200-234
Kelvin Probe Cable with removable, insulated clip
Power Cord
3000-009
Power Cord, 15A, HOSP, 10', NA, (NEMA 5-15P -> C19)
3000-010
Power Cord, 20A, HOSP, 10', NA
3000-011
Power Cord, EU1-16P, R/A Plug, 10', EU (Schuko CEE7-7 -> C19)
3000-012
Power Cord, UK1-13P, R/A Plug, 10', UK (BS1363A -> C19)
3000-015
Power Cord, 10', (BS546A -> C19), IN
3000-016
Power Cord, Denmark 13A-250V, 13P Plug C-19 CONN 2.5M Black IEC 60320
3000-017
Power Cord, 10', (BS1363A -> C19), CL
3000-018
Power Cord, Australia, 10', (AU2-15P -> C19)
3000-019
Power Cord, 16A, 8’, Brazil, (BR3-20P -> C19)
Interface Module
7400-094
vPad-Mini Applied Part Junction Box
Printer
7050-058
Compact Bluetooth Report Printer (80mm)
Barcode Scanner
7600-055
Barcode scanner (Bluetooth)
