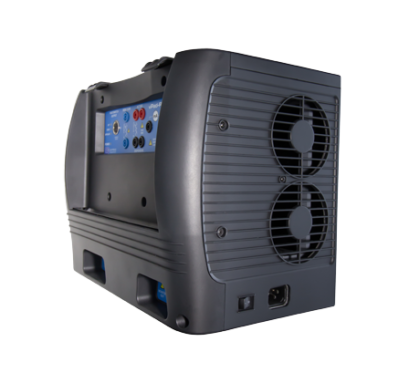

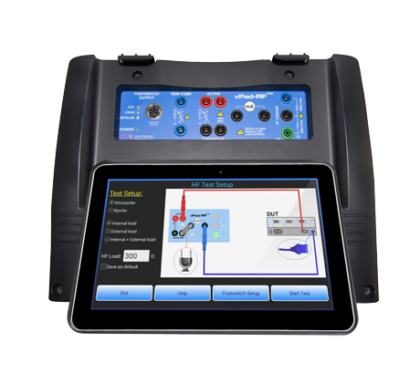

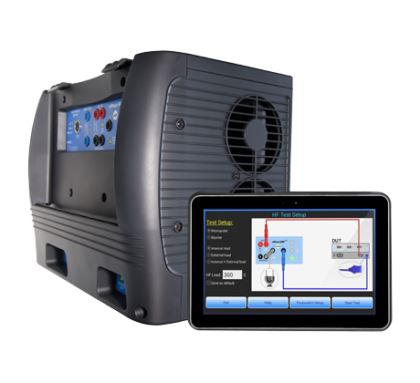

vPad-ESU is the smallest full-featured analyzer for testing Electrosurgical Units (ESUs).
Built on our Vision-Pad platform, vPad-ESU has all the functionality you have come to expect from products built on this platform. What really makes this product unique is its built-in HF Digital Scope and Spectrum Analyzer.
- Use the many benefits of Android tablet technology to optimize testing
- Save time, save money, save manpower!
- Automate test sequences
- Eliminate human error
- Easy-to-read graphics and reports
- User Programmable
Note: vPad-ESU is only available in the U.S. market
- Digital signal processor (DSP) enables accurate testing of all ESU makes and models
- Integration of ESU testing with HF digital storage oscilloscope and spectrum analyzer functions provides three pieces of test equipment in one
- High powered RF load provides settings required for all IEC 60601-2-2 tests, including Covidien ForceTriad maintenance procedures
- Wide measurement range – up to 8.5A
- Pre-Configured OEM Preventive Maintenance automated procedures for most major manufacturers
- Works with vPad safety analyzers and automation apps
Standard Apps
Datrend Docs
Save, Store and Find Technical Documents.
The vPad Datrend Docs is a technical document library, ideal for storing electronic manuals, procedures and specifications. Datrend Docs comes installed with all Operator Manuals for the vPad family.
Record Manager
View/Print/Convert and Copy Test Reports.
Record Manager provides direct access to all test reports created by the vPad Apps. Reports can be reviewed on screen. In addition, reports can be converted to PDF documents; printed to a wireless printer; or copied to USB or a Bluetooth device (PC) one at a time, or in user-selected groups. Test records can also be transferred directly to DropboxTM, box, Google Drive and OneDrive. File management has never been so easy or complete on a basic manual safety tester.
Cable
3140-069
Cable, vPad XBus/XSC RJ12-RJ12, CROSSOVER BLACK 7'
3220-600
Shorting Jumper
7200-540
Valley Lab Foot Switch Cable, Cut/Coag, Monopolar
7200-541
Force Triad Foot Switch Cable, Cut/Coag
7200-542
Conmed Foot Switch Cable, Cut/Coag, Monopolar
7200-543
Erbe ICC350 Foot Switch Cable, Cut/Coag
7200-544
Multi ESU Foot Switch Cable, Bipolar
7200-545
Bowa Foot Switch Cable, Cut/Coag, Monopolar
7200-546
Olympus Foot Switch Cable, Bipolar
7200-547
Olympus Foot Switch Cable, Cut/Coag, Monopolar
7200-548
Unterminated ESU Foot Switch Cable
7200-549
Bifurcated Foot Switch Cable, Unterminated at ESU
7200-557
Force Triad Foot Switch Cable, Mono/Bipolar
7200-558
Conmed Foot Switch Cable, Mono/Bipolar
7200-559
Valleylab Foot Switch Cable, Mono/Bipolar
7200-570
REM test cable, 60", 2 blue banana plug cable with non-retractable safety sleeve to REM enabling plug (pin intact)
7200-571
REM test cable, 60", 2 blue banana plug cable with non-retractable safety sleeve to REM enabling plug (made from disposable REM cable with pin removed)
7200-572
Dispersive lead for HF Leakage Test, 60", 1 blue banana plug with non-retractable safety sleeve to REM disabling plug
7200-573
Test pencil, Monopolar, 2 button, Valley Lab, Conmed, Olympus, others with 10" red lead and retractable sleeve banana plug
7200-574
Test Lead, 30" red, with 2 retractable sleeve banana plugs
7200-575
Test Lead, 30" black, with 2 retractable sleeve banana plugs
7200-576
Activation Jumper, Cross Coupling Test Plug (Conmed)
7200-577
Force Triad UFP to banana Cable Assembly
7200-578
Olympus ESG-400 'E001' Test cable
7200-579
Olympus ESG-400 'AEOP' Test cable
7200-580
Force Triad calibration key (2 black dots)
7200-582
HF Leakage Jumper
Power Cord
3000-004
Power Cord, UK
3000-005
Power Cord, AU/CN
3000-006
Power Cord, EU
3000-007
Power Cord, IN/ZA
3000-471
Power Cord, NA
3000-474
Power Cord, BR
Kit
7500-150
Covidien Force Triad Test Accessory Kit (7200-557 + 7200-577 +7200-571 +7200-580)
7500-151
ValleyLab FX Test Accessory Kit (7200-559 + 7200-571 + 7200-573)
7500-152
Conmed 5000 Test Accessory Kit (7200-558 + 7200-573 + 7200-576)
7500-153
Olympus ESG-400 Test Accessory Kit (7200-578 + 7200-579 +7200-573 + 7200-571)
7500-430
Kit, Banana Test Lead/Crocodile Clip, Green
Case/Bag
7006-066
Accessory Bag, 12 in x 6.5 in x 3 in
