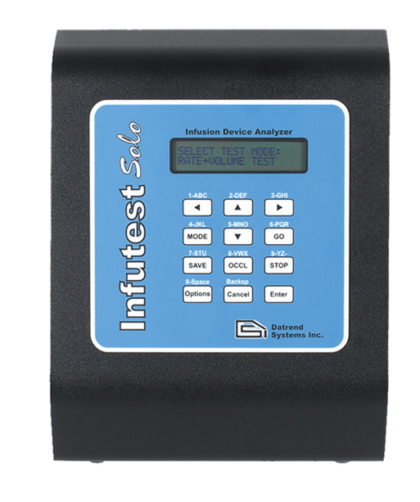

Highly Accurate and Cost-Effective Single-Channel Analyzer
Infutest Solo meets the needs of customers who desire a highly accurate infusion device analyzer capable of a measuring infusion device output flow patterns, including pulsatile flows, but can manage their work load with a cost-effective single-channel analyzer.
Memory Storage for up to 120 Tests
The Infutest Solo has internal memory storage for up to 120 test records. You can further expand testing capabilities by connecting the Infutest Solo to vPad Electrical Safety Analyzers by running full auto sequences.
Store and Transfer Data Easily
Use the front panel keypad to enter or connect an external barcode reader to scan the control number of the pump you are testing. Store the test results on all of the pumps you process, then transfer the test data to the Infutest Solo PC Utility Software at your convenience via USB or RS-232. It’s that easy!
-
- Accuracy – 1% on ALL pumps, including Baxter Colleague and Alaris® Signature.
- Portability – Infutest Solo allows both line and battery use. Battery provides up to 30 hours of continuous operation.
- Auto-Test Mode – Enables automatic flow and pressure test for VTBI/Dose accuracy tests and more.
- Multi-Pump Test Results – Infutest Solo will retain the test results for more than 120 pump tests in its internal memory until downloaded to a PC.
- Keypad Input – Infutest Solo allows the user to enter an equipment control number from the front panel keypad or by using the optional RS-232 barcode scanner to uniquely identify individual tests.
- USB Connectivity – Infutest Solo incorporates USB communication capabilities for efficient data transfer to your PC.
- Data Transfer – Infutest Solo comes complete with Windows-based data transfer program (DTP-Solo) for quick and easy data transfer, plus organization and printing of test results.
- vPad Connectivity – Connect Infutest Solo to your vPad Electrical Safety & Performance Analyzers for the ultimate in capability and flexibility!
Cable
3140-399
Adaptor, USB To Serial DB9M
3140-400
Cable, Null Modem, DB9F TO DB9F, (Phase 3/Solo to PC via RS-232)
3140-403
Cable, USB A-B Male, 6'
Power Cord
3000-400
SPS,15W WPI, 100-240VAC, 18VDC/840MA, No AC Input (must add AC Input below)
3000-401
AC Input For 6W/15W WPI SPS, NA
3000-402
AC Input For 6W/15W WPI SPS, EU
3000-403
AC Input For 6W/15W WPI SPS, UK
3000-404
AC Input For 6W/15W WPI SPS, AU
Kit

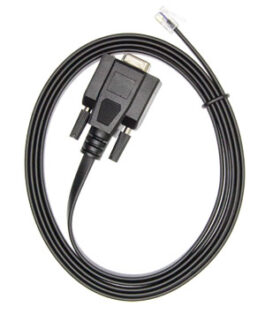

7500-435
Kit, Serial Adapter, ES601 -> P3/Solo, AMPS-1 -> PC (RJ12 -> DB9F) (ES601 to Solo/Phase3)
Case/Bag
7006-050
Accessory Bag, 8.5” x 6” x 2.75” (Large)
7006-054
Soft Case, Medium Multi-Product, 17” x 14” x 7”
7006-055
Soft Case, Large Multi-Product, 17” x 14” x 11”
Tubing Set
7300-012
Assy, IFT Solo Input Output Tubing
Syringe
7006-006
Syringe, 60 cc, Luer Lock Tip
